45Mhz Center Frequency 40dB 45M 15A Crystal Filter

Product Categories

hanse-john electronic Co.,Ltd.

Contact Now

Ask Lasest Price
Brand Name :	HANSEJOHN
Model Number :	HM45M15B M. C. F. [ Monolithic Crystal Filters ]
Certification :	Rohs，ISO
Price :	$2.8-20/pcs
Payment Terms :	MoneyGram, Western Union
Supply Ability :	200000pcs per month
Delivery Time :	25 day

Add to Cart

1.	(Model ):	HM45M15B
2.	(Nominal Center Frequency):	45.00MHz
3.	(Pass Band Width at 3dB):	≥7.5kHz
4.	(Ripple in Pass Band Width):	≤1.0dB
5.	(Insertion Loss):	≤3.0dB
6.	(Stop Band Width ):@30dB	25kHz
	Stop Band Width:@90dB	----------
7.	(Guaranteed Attenuation):	≥40dB(+/-300KHZ)
8.	(Terminating Impedance):3.3kΩ//0pF
9.	(Input level):	0～15dBm
10.	(Operating Temperature Range):	-20℃～+70℃

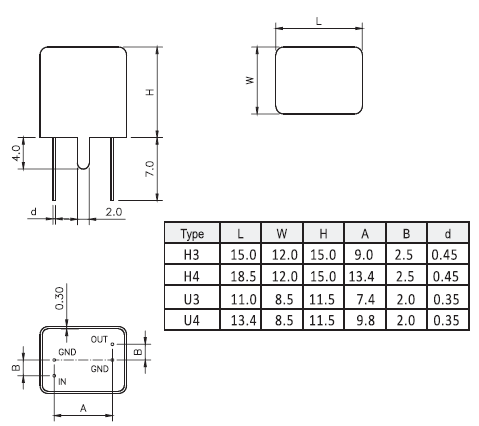

11.	Package type	UM-1× 2
